Produktinformation

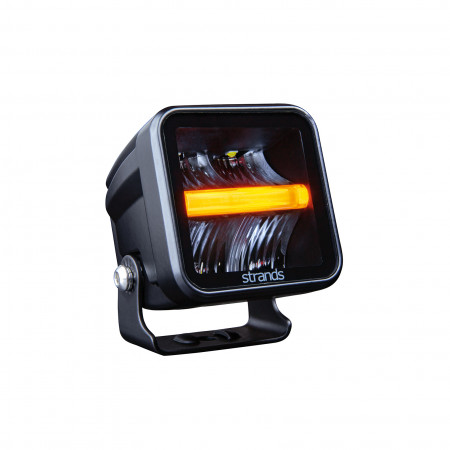

Siberia Qube er en arbejdslampe udviklet til at give en bred lysspredning. Leverer 1 lux på 166 meter. Siberia Qube har et diskret, kompakt design, som gør den perfekt til mindre køretøjer, hvor der ikke er plads til større lamper. Kan bruges både alene og parvis. Lampen har også en duo-positionslys med gult og hvidt lys.

Type of LED — Osram
PCS LED´s — 4
Voltage (V DC) — 9-32V DC
Theoretical effect (w) 12V — 40
Theoretical effect (w) 24V — 40
Consumption (w) 12V — 37.1
Consumption (w) 24V — 36.5
Functions — Temperature control system
Theoretical lumen — 4800
Actual lumen — 2949
1 LUX @ m — 166
Kelvin — 6000
IP-class — 67/69K
Colour housing — Black
Colour lens — Clear
Colour LED´s — Amber
Beam pattern — Flood
Position light — Yes. amber and white
Connection — DT-4
Cable length (mm) — 500
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 72
Depth (mm) — 72
Height (mm) — 72
Height including bracket (mm) — 81,5
Operating temperature — -20°C - +45°C
ADR-approved — No
E-approved — No
EMC — ECE R10
Black cable — - (Negative)
Red cable — + (Positive)
White cable — White Position light
Yellow cable — Amber Position light
Mounting details included — Screws. washers. Bolts
