LED BAR KIT ARCUM 30, SUITABLE RENAULT MASTER 2020-2024

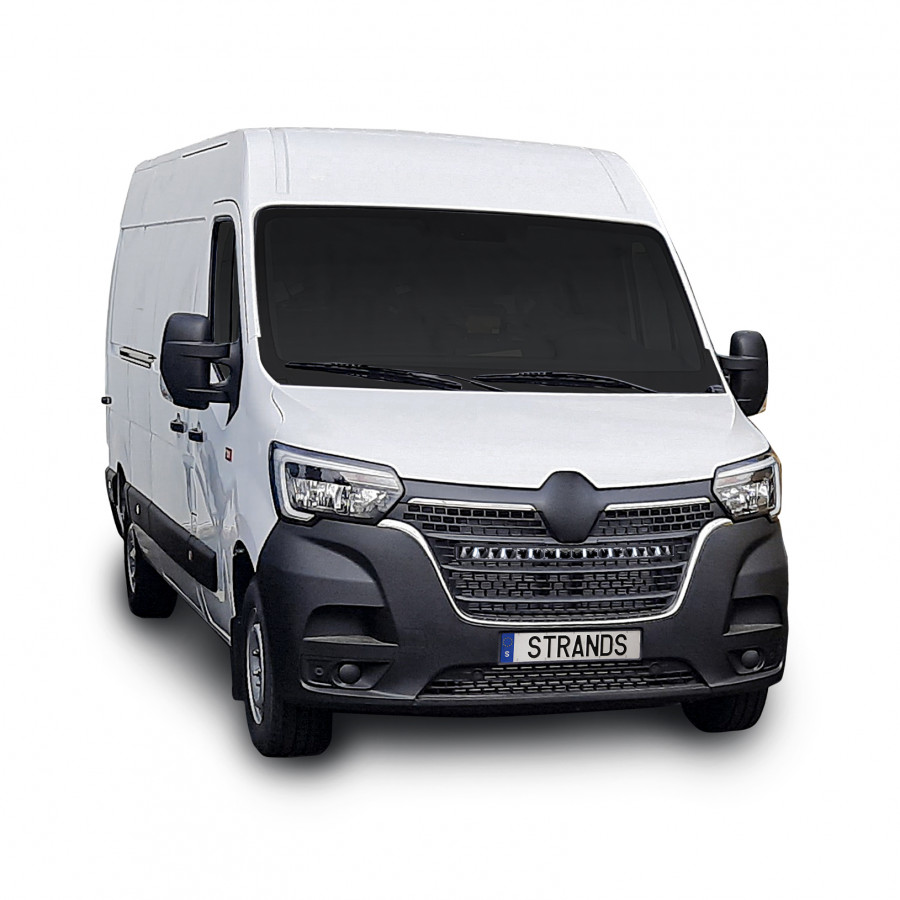

A complete model-specific LED-bar kit for RENAULT MASTER 2020-2024
Everything needed for a clean and secure installation is included in a single package. Including:
— LED bar ARCUM 30
— Model-specific mounts
— Wiring kit/relay kit with DT connector
— Mounting instructions

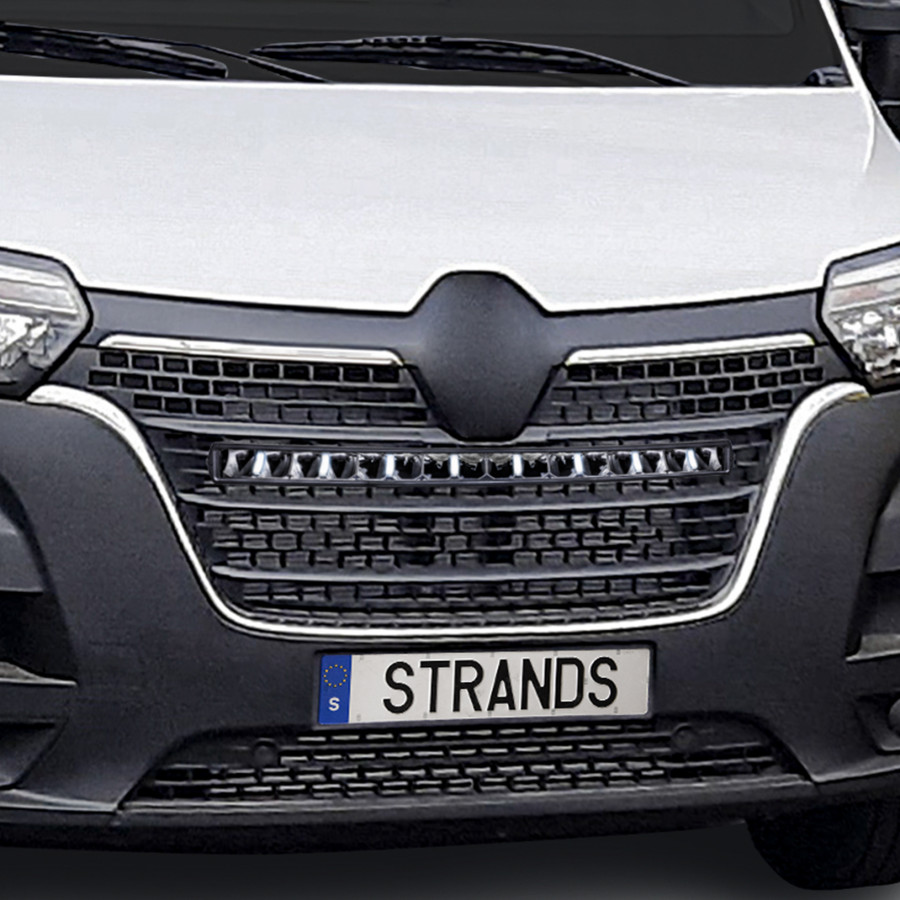

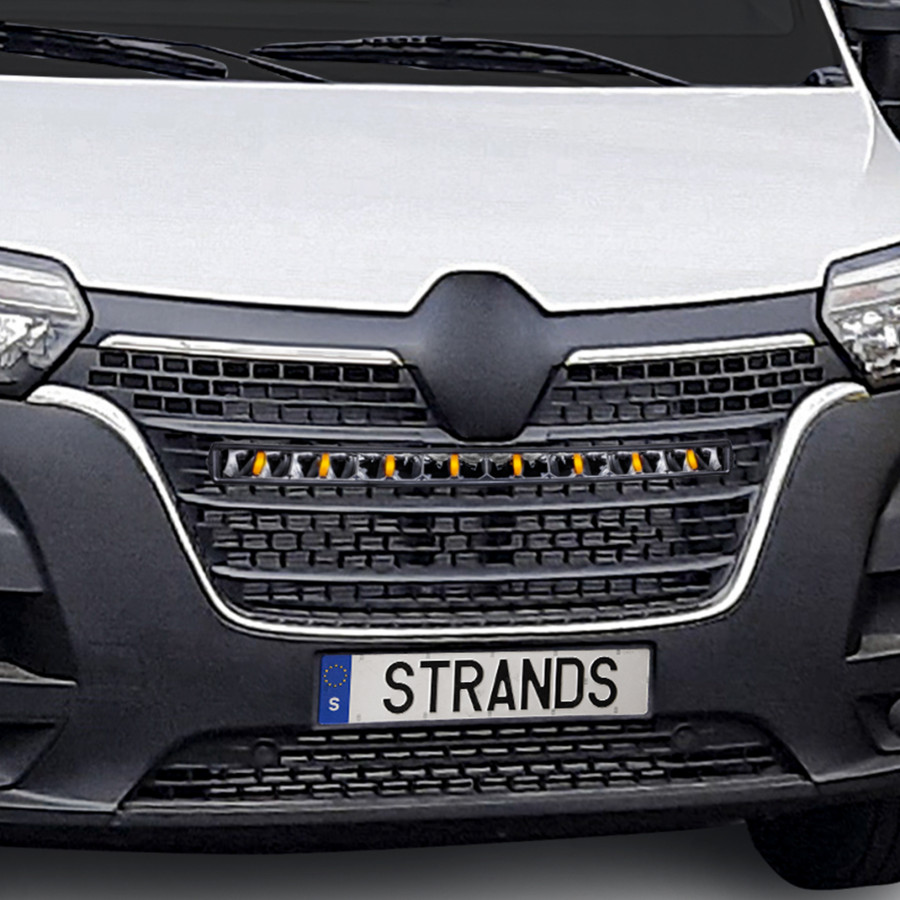

Arcum 30 is a single row LED bar developed for the optimal lighting experience. The curved shape and the optimized combination beam pattern, both flood and spot make it suitable for all types of roads. The LED bar comes with position lights where the light bars are positioned vertically one behind the other. Arcum 30 is E-Approved according to R112.

Type of LED — ETI
PCS LED´s — 16
Voltage (V DC) — 9-36V DC
Theoretical effect (w) 12V — 160
Theoretical effect (w) 24V — 160
Consumption (w) 12V — 123
Consumption (w) 24V — 120
Theoretical lumen — 15200
Actual lumen — 12920
1 LUX @ m — 480
Kelvin — 6500
IP-class — 68
Colour housing — Black
Colour lens — Clear
Colour LED´s — White
Beam pattern — Combobeam
Position light — Yes
Connection — ATP
Cable length (mm) — 500
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 810
Depth (mm) — 73
Height (mm) — 56
Height including bracket (mm) — 72,5
Operating temperature — -40°C - +60°C
E-approved — Yes
According to regulation — ECE R112. R7
Reference number — 45
EMC — ECE R10
